USB-TnH (SHT30)
The USB-TnH (SHT30) is an advanced USB temperature and humidity sensor. Its measurement results can be easily accessed through simple ASCII commands via the CDC Virtual Serial Port, simplifying programming compared to other USB communication methods.

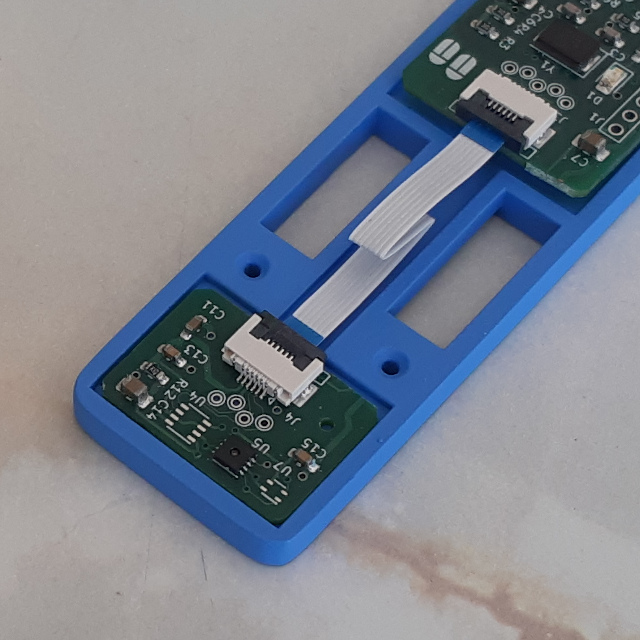

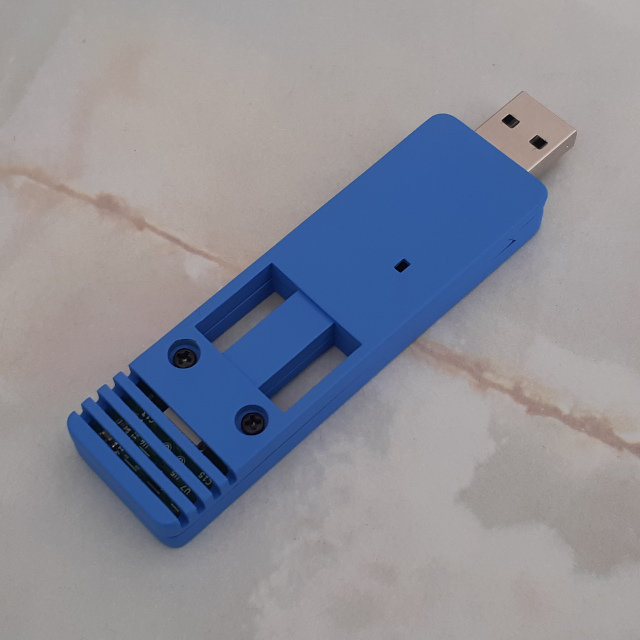

The carefully designed 3D-printed case ensures optimal performance by isolating the sensor chip from the MCU. Additionally, the large air gap around the sensor allows for maximum exposure to the ambient environment, enhancing the accuracy and reliability of the measurements.
Specifications
| Operating Temperature (CPU): | -20°C ~ +70°C |
| Connection to PC: | USB (CDC Virtual COM port) |
| Power: | USB Powered |
| Temperature Accuracy: | +/-0.2°C (0°C to 65°C) |
| Temperature Resolution: | 0.01°C |
| Temperature Range: | -40°C to 125°C |
| Humidity Accuracy: | +/-2 %RH |
| Humidity Resolution: | 0.01 %RH |
| Humidity Range: | 0 %RH - 100 %RH |
Best performance when operated at 5 °C to 60 °C and 20 %RH to 80 %RH
Features
- USB Type A Plug.
- Simple ASCII Command.
- Utilizes MCU as a CDC Virtual Serial Port (using usbser.sys on Windows; natively supported by macOS and most Linux distributions).
- Uses SHT30 (a single-chip sensor) for temperature and humidity sensing
Package Content
- USB-TnH (SHT30) Sensor
Shipping and Payment
- Worldwide shipping via Airmail
- For direct purchase, we accept Paypal.
Serial command
| Action | Command | Response |
| Get Model Name | GI\n | USB-TnH SHT30\n |
| Get Version | GV\n | V2.01\n |
| Get Temperature | GT\n | 21.73\n |
| Get Humidity | GH\n | 39.85\n |
| Get Unit Name Default is "SENSOR", can set by user. | GN\n | SENSOR\n |
| Set Unit Name Up to 8 characters, stored at FLASH. | N=name\n | OK\n |
| Turn off LED Indicator Will restore to "Turn on" after restart | I=0\n | OK\n |
| Turn on LED Indicator | I=1\n | OK\n |
| Get all reading in JSON format | GJSON\n | {"T":21.73,"H":39.85}\n |
Hint: You may need to issue a newline character (\n) the first time you open the port. This can clear any unwanted characters that are sent when opening the port.
